2022 Gockel Knife Sharpener / Grinder

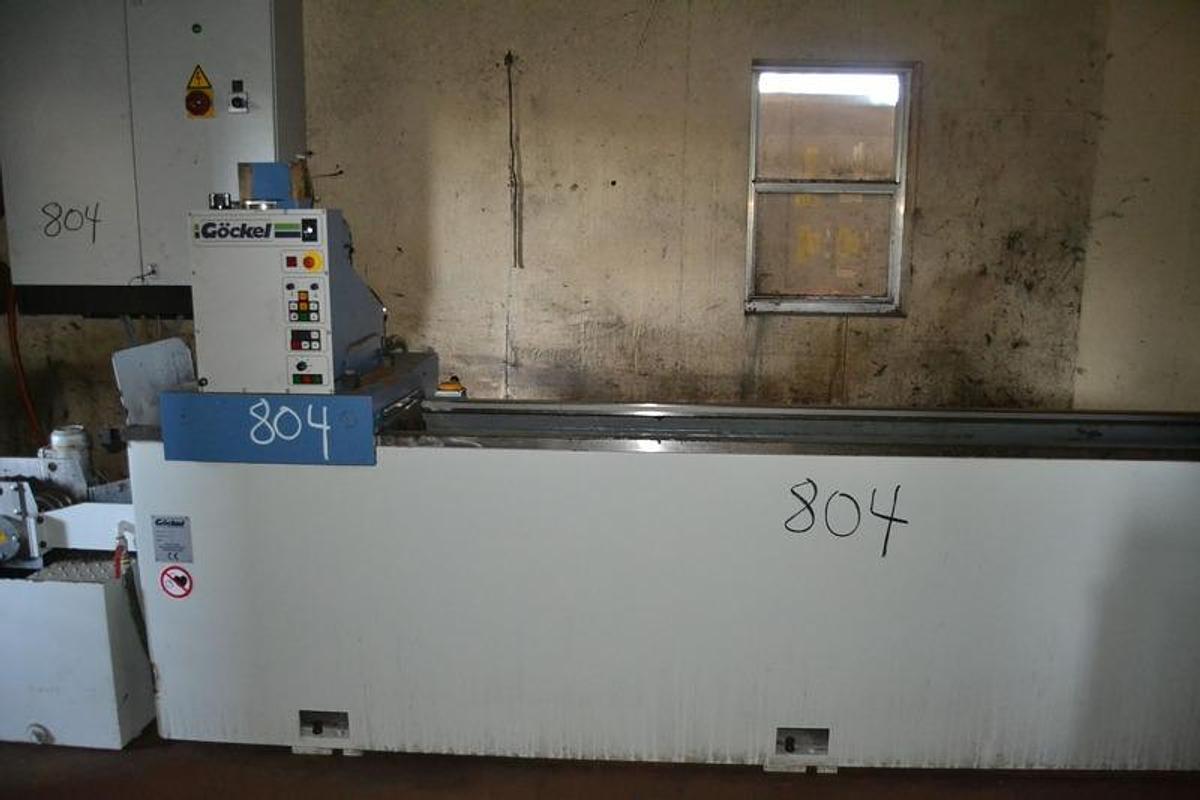

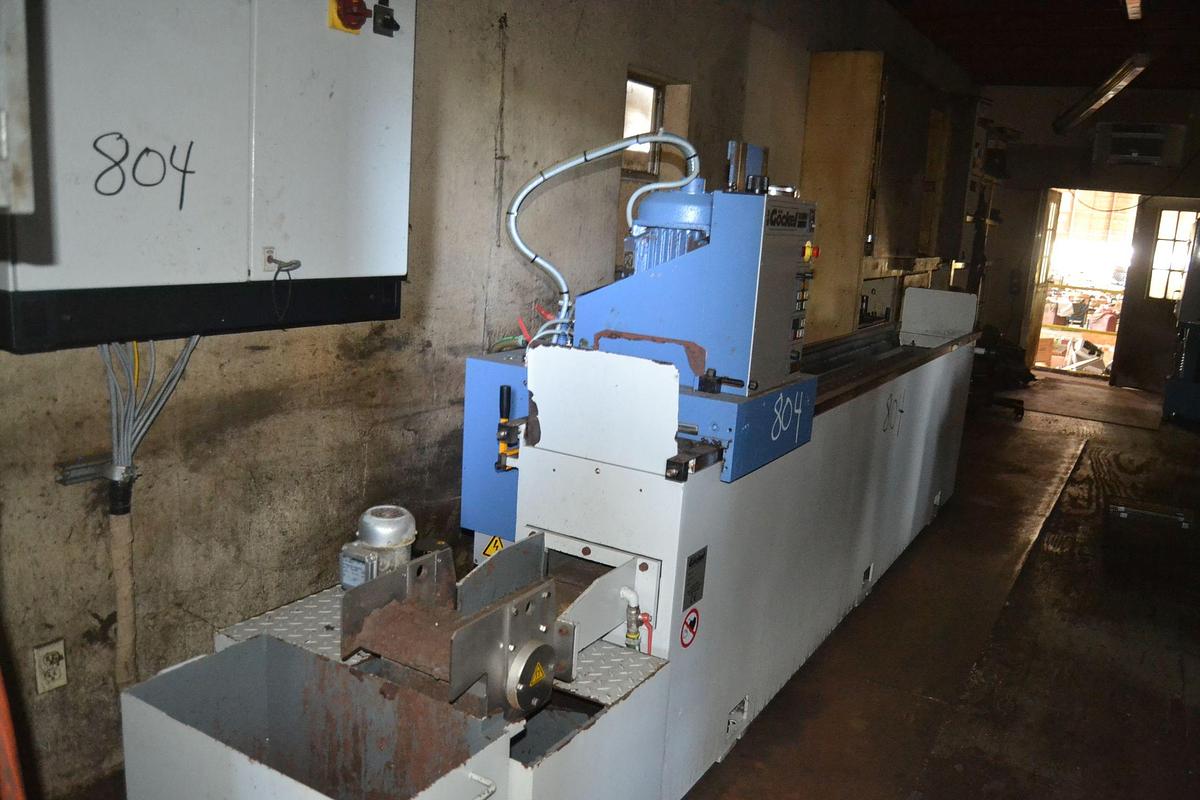

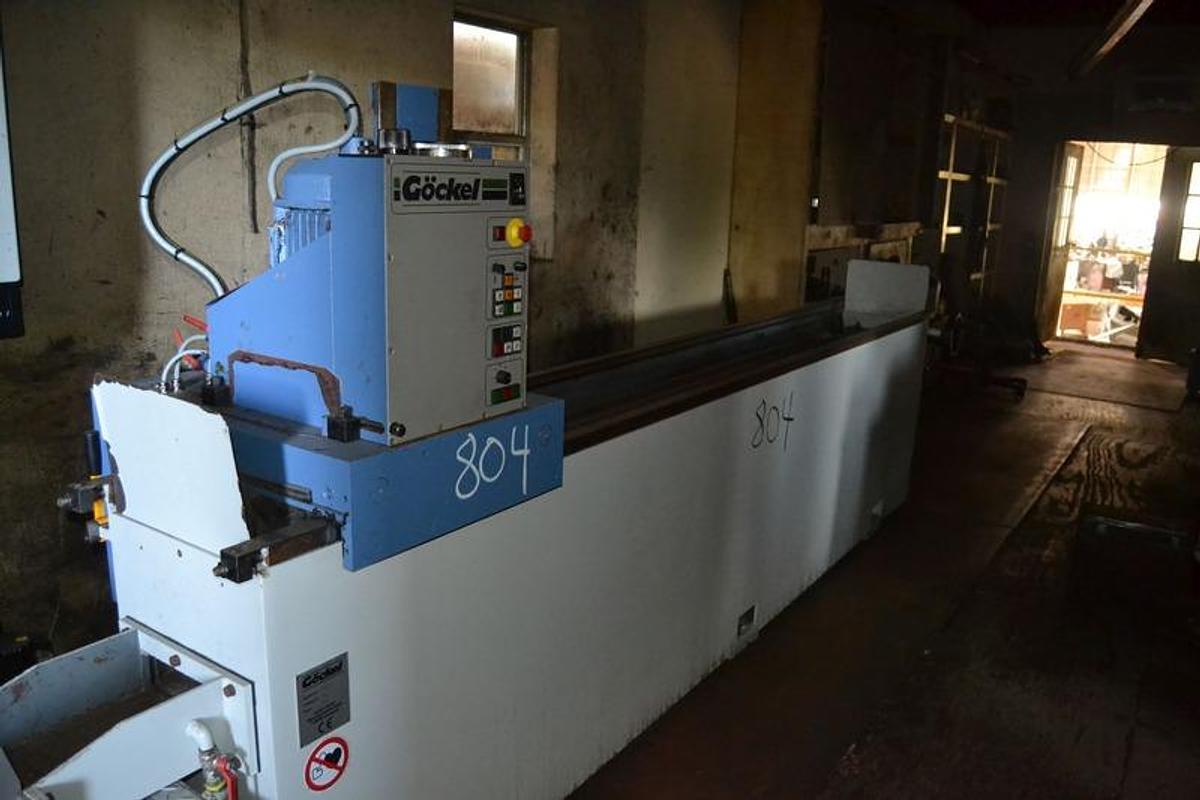

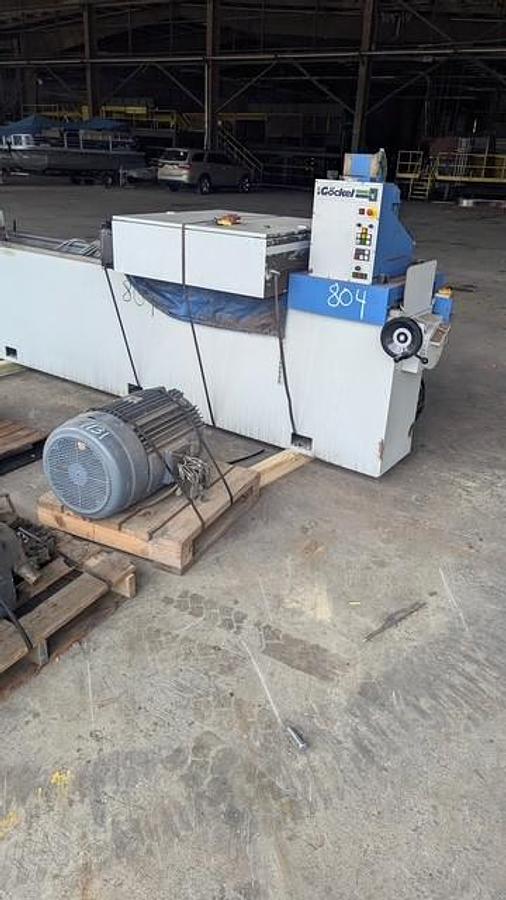

2022 Göckel Model G50 EL Automatic Straight-Knife Grinder

Heavy-duty, precision straight-knife grinding machine manufactured in Germany by Göckel. The Model G50 EL is designed for accurately sharpening long industrial knives used in sawmills, veneer and plywood plants, paper mills, recycling operations, and other production applications.

Features an electromagnetic worktable with 360-degree rotation for setting the required knife-grinding angle, programmable automatic carriage travel, and controlled grinding-head downfeed. Its rigid cast construction and hardened guideways provide excellent stability, accuracy, and surface finish.

Specifications:

• Grinding-length capacity: G50 EL machines were manufactured in working lengths from 1,000 to 7,000 mm (approximately 39" to 276"), depending upon the machine’s ordered configuration
• Maximum grinding width: 225 mm (8.86")
• Maximum grinding height: approximately 120–140 mm (4.72"–5.51"), depending upon configuration
• Grinding-wheel diameter: up to 250 mm (9.84")
• Grinding motor: available from 5 to 15 HP at 1,750 RPM
• Carriage travel speed: approximately 0.02–30 meters per minute
• Electromagnetic table width: approximately 155 or 200 mm
• Table rotation: 360 degrees
• Automatic coolant system
• Year manufactured: 2022

This late-model Göckel offers the heavy construction, precision, and automated operation required for dependable production knife grinding.
