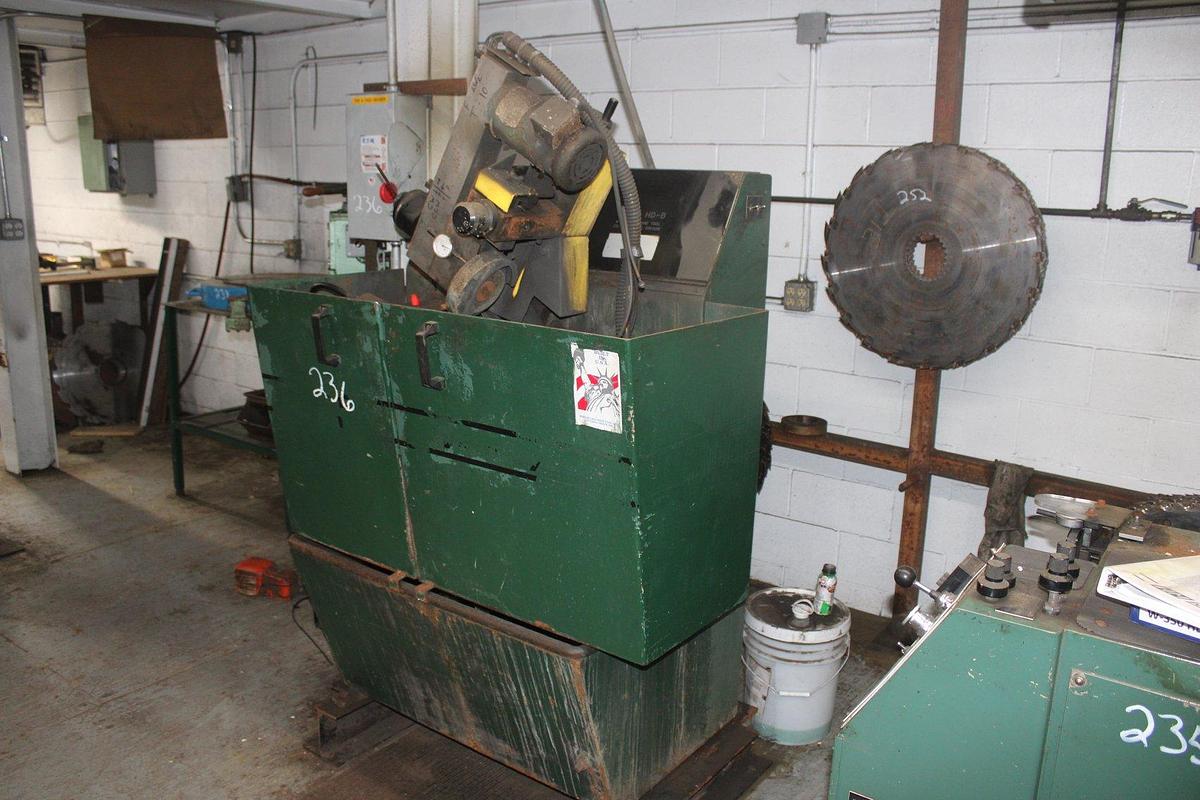

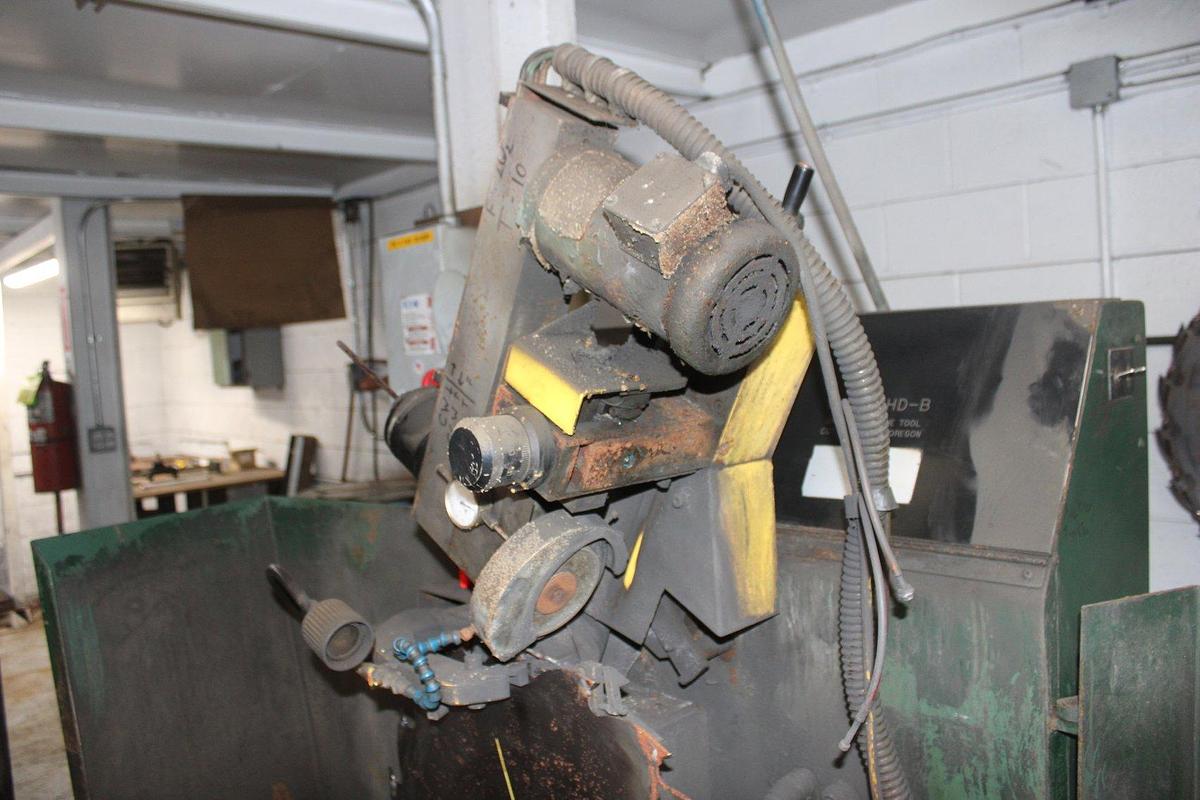

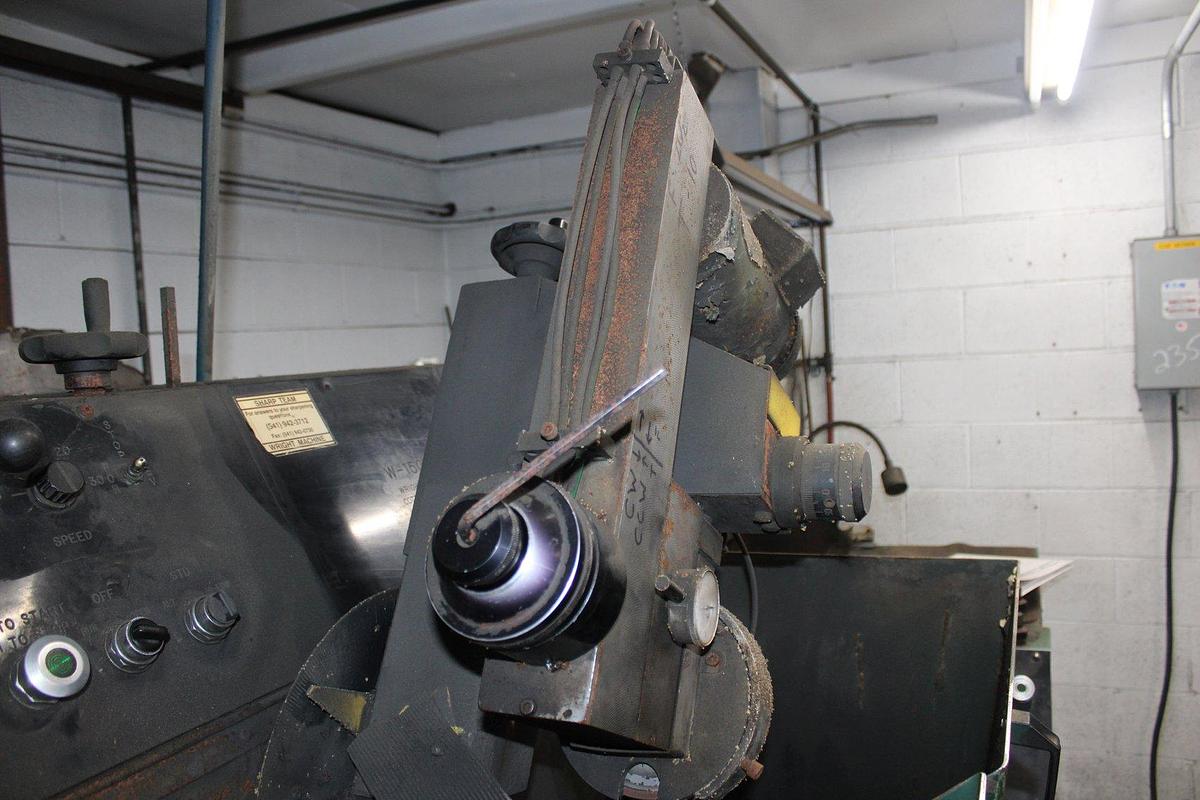

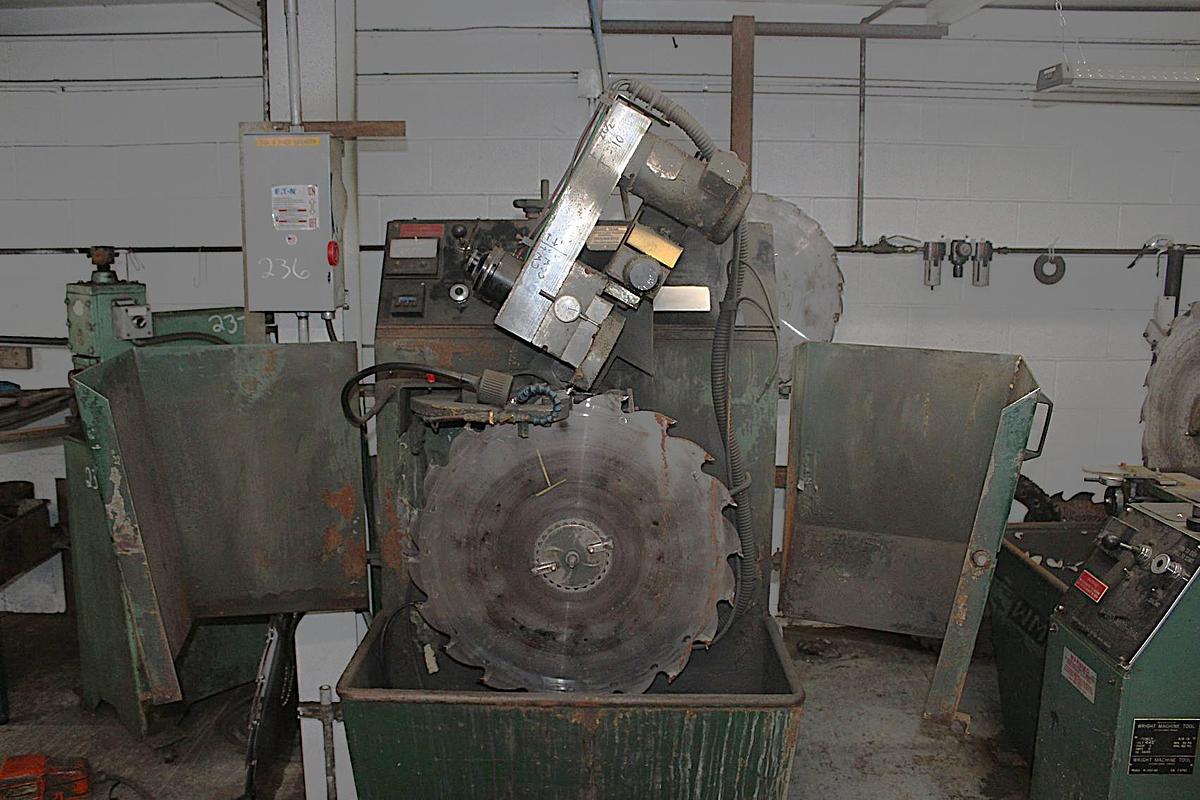

WRIGHT 150 HD Face & Top Grinder

The Wright W-150 HD-B is a heavy-duty automatic sharpener designed for top and face grinding of circular saws, including flat, alternate top bevel (ATB), and triple chip tooth geometries. Renowned for its robust construction and precision, it has become a standard in the saw sharpening industry.Wright Machine Tool+2Wright Machine Tool+2Machinery Associates+2

🔧 Specifications

• Saw Size Capacity: 4" to 30" (up to 54" with optional large saw center)
• Spindle Motor: 1 HP, 3-phase, 3450 RPM

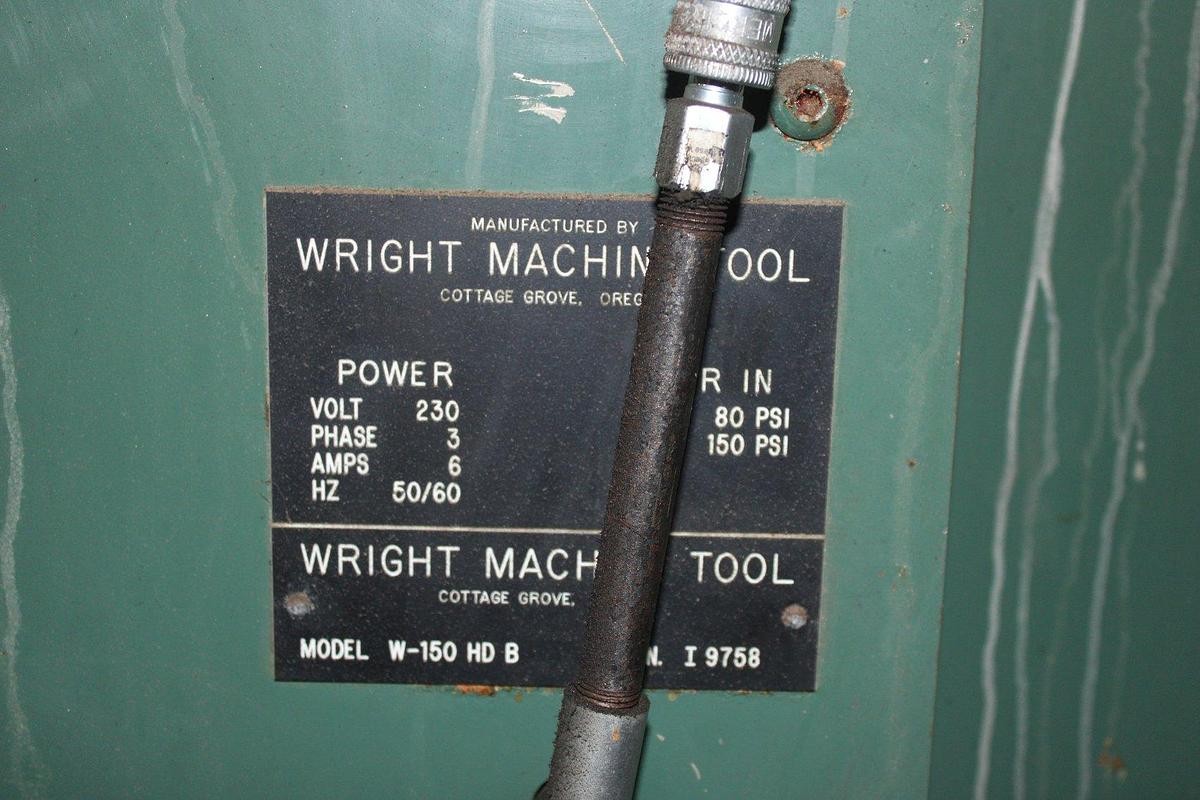

• Power Requirements:
• Standard: 230V, 3-phase, 60 Hz
• Optional: 460V, 3-phase, 60 Hz
• Air Requirements: 2 CFM at 100–150 psi
• Coolant Capacity: 7 to 10 gallons (rust-inhibiting grinding coolant required)
• Shipping Weight: Approximately 1,350 lbs
• Crate Dimensions: 49" x 44" x 62"
• Maximum Tooth Pitch: 4-1/4"
• Grinding Wheel Specifications:
• Facing Wheel: D-36 (6" diameter)
• Topping Wheel: D-37 (4-1/2" diameter)
• Grinding Modes:
• Straight Face or Top: 1 pass
• Alternate Top: 2 passes
• Triple Chip: 3 passesMachineTools+2Wright Machine Tool+2Wright Machine Tool+2MachineTools+3Wright Machine Tool+3Wright Machine Tool+3Machinery Associates

⚙️ Key Features

• Lift-Off Grind on Return Stroke: Enhances grinding accuracy and reduces wheel wear.
• Precision Multi-Bearing Spindle: Ensures consistent grinding performance.
• Heavy-Duty Slide System: Provides stability and durability during operation.

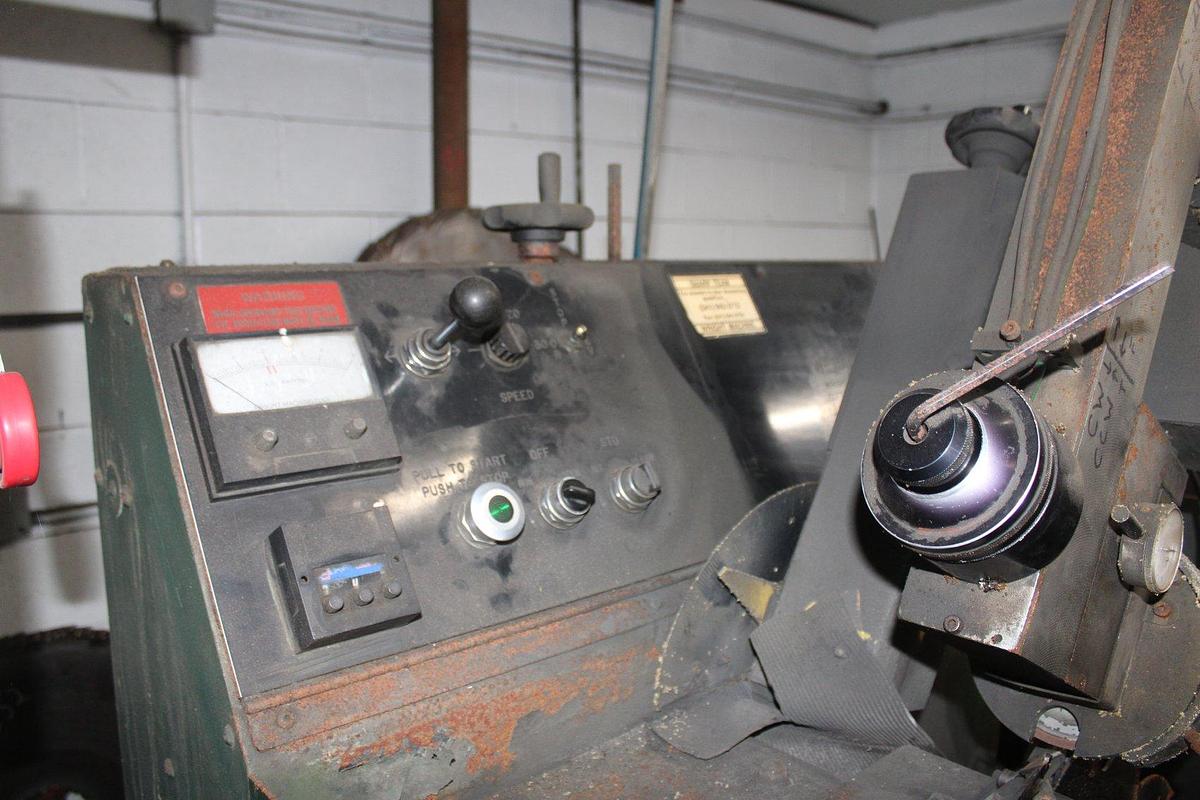

• Load Monitor: Adjusts feed rate to prevent grinding wheel damage and ensures efficient tooth replacement.
• Powered Saw Lift: Automatically positions the saw at the correct height, reducing setup time.
• Saw Diameter Auto-Set: Simplifies the adjustment process for different saw sizes.
• Micrometer Plate Adjustment: Allows for precise bevel angle settings.
• Dual-Pressure Saw Clamp: Secures the saw firmly during grinding.
• Filtered Full Flood Coolant System: Maintains optimal cooling and cleanliness during operation.
• Tooth Counter with Auto-Stop: Automatically halts the machine after a set number of teeth are sharpened.
• Low-Voltage Work Light: Illuminates the work area for improved visibility.
