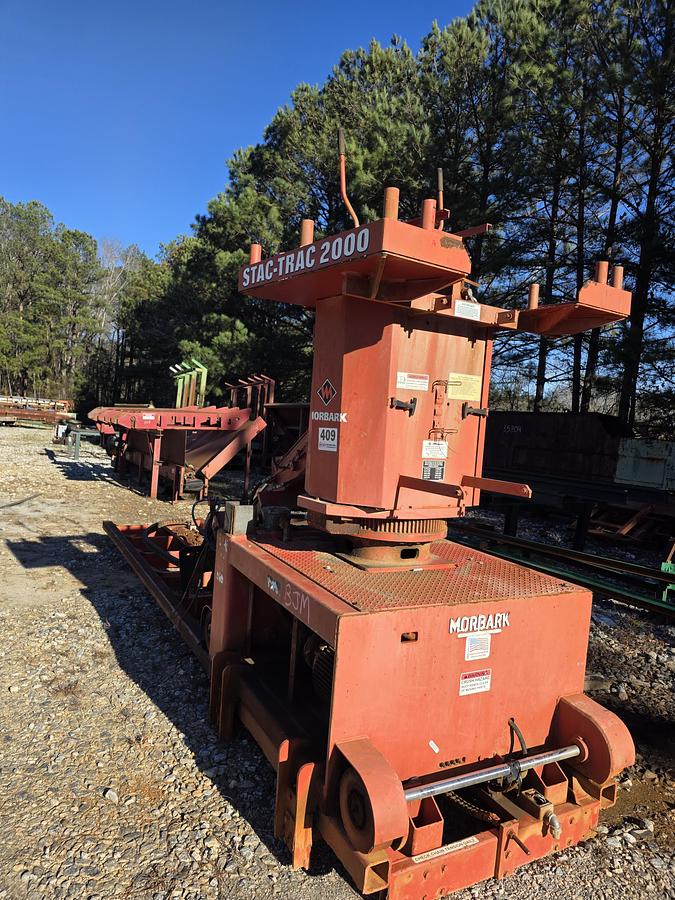

MORBARK Stac Trac 2000

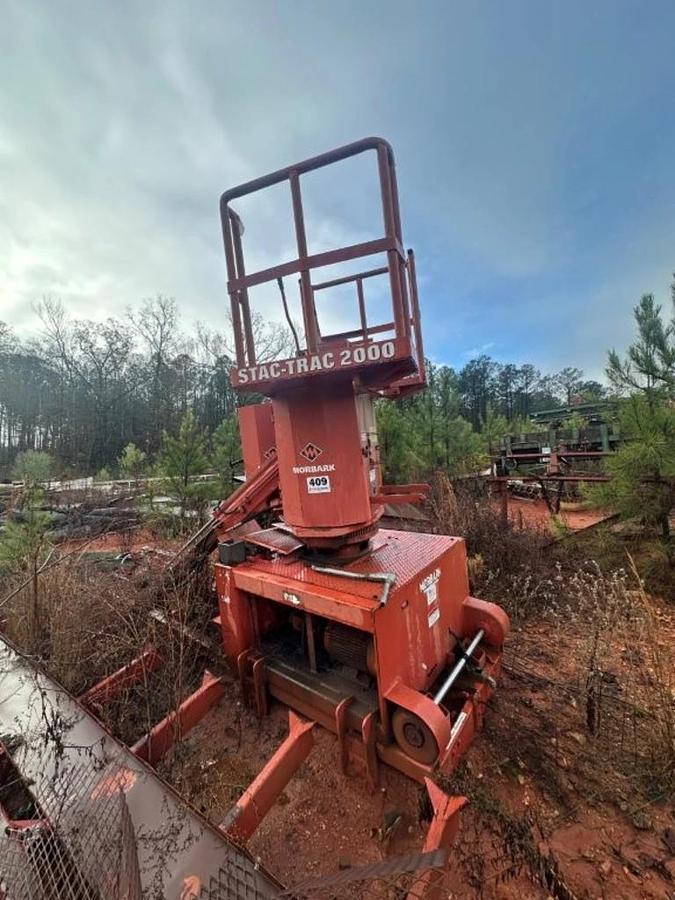

Morbark StacTrac Model 2000 – Industrial Lumber Stacker / Material Handling Unit

The Morbark StacTrac Model 2000 is a rugged industrial material handling machine designed for efficient sorting, lifting, and stacking of lumber, ties, cants, timbers, and similar wood products in sawmill and mill-yard operations. Built with durability and operator comfort in mind, this unit dramatically reduces manual labor requirements, increases throughput, and improves workplace safety by mechanizing heavy lifting and precise placement tasks.

Key Features:

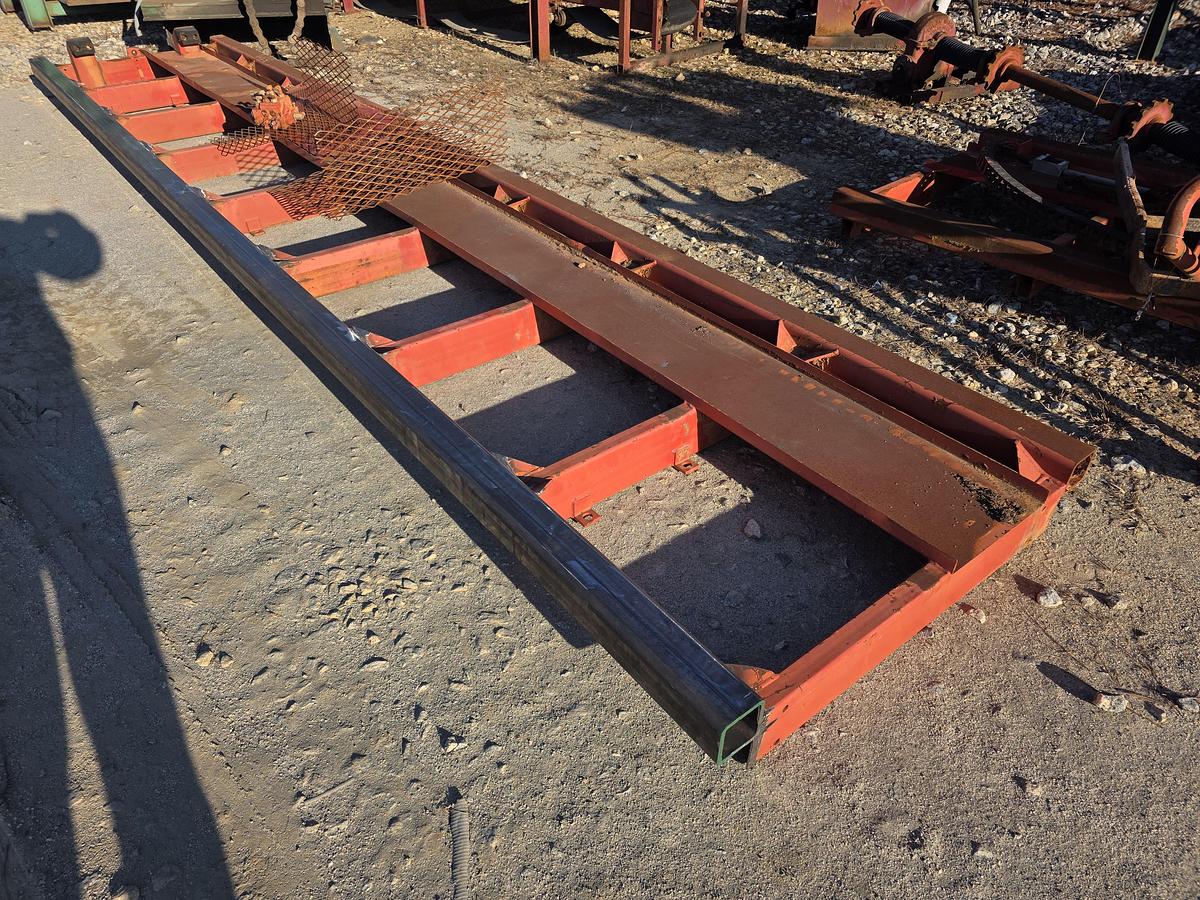

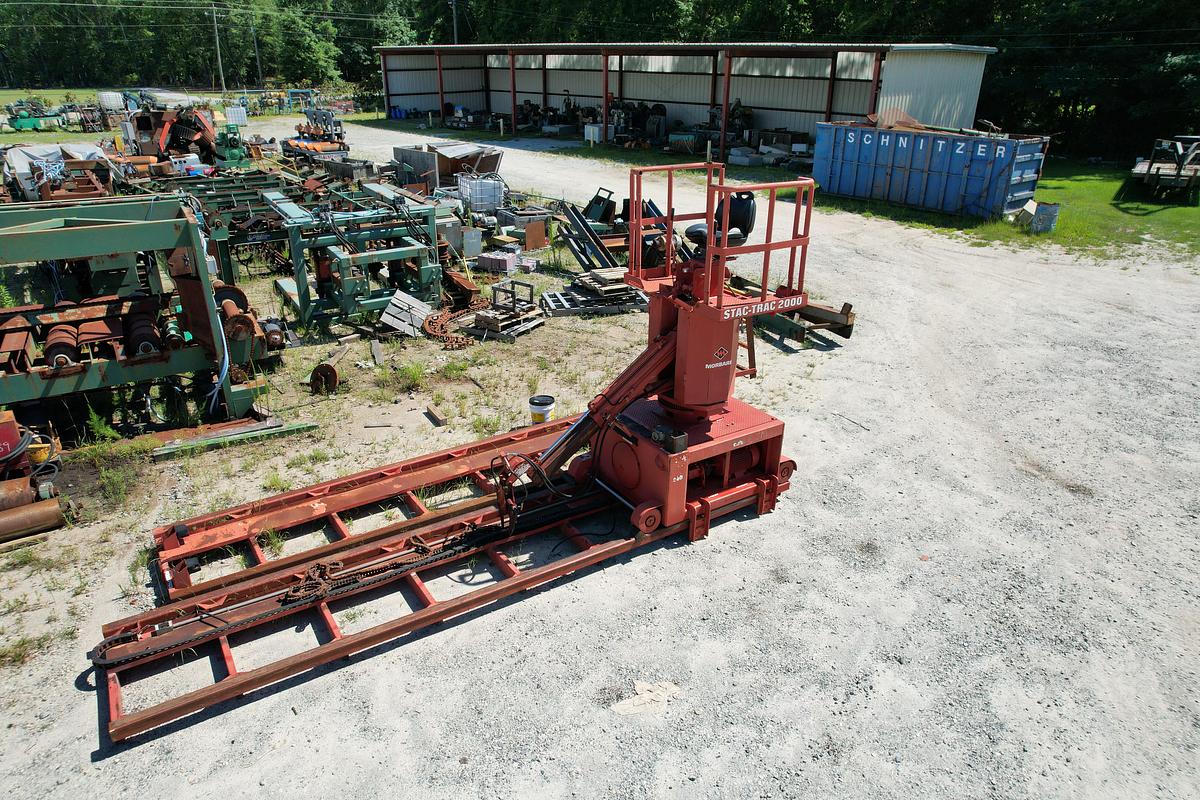

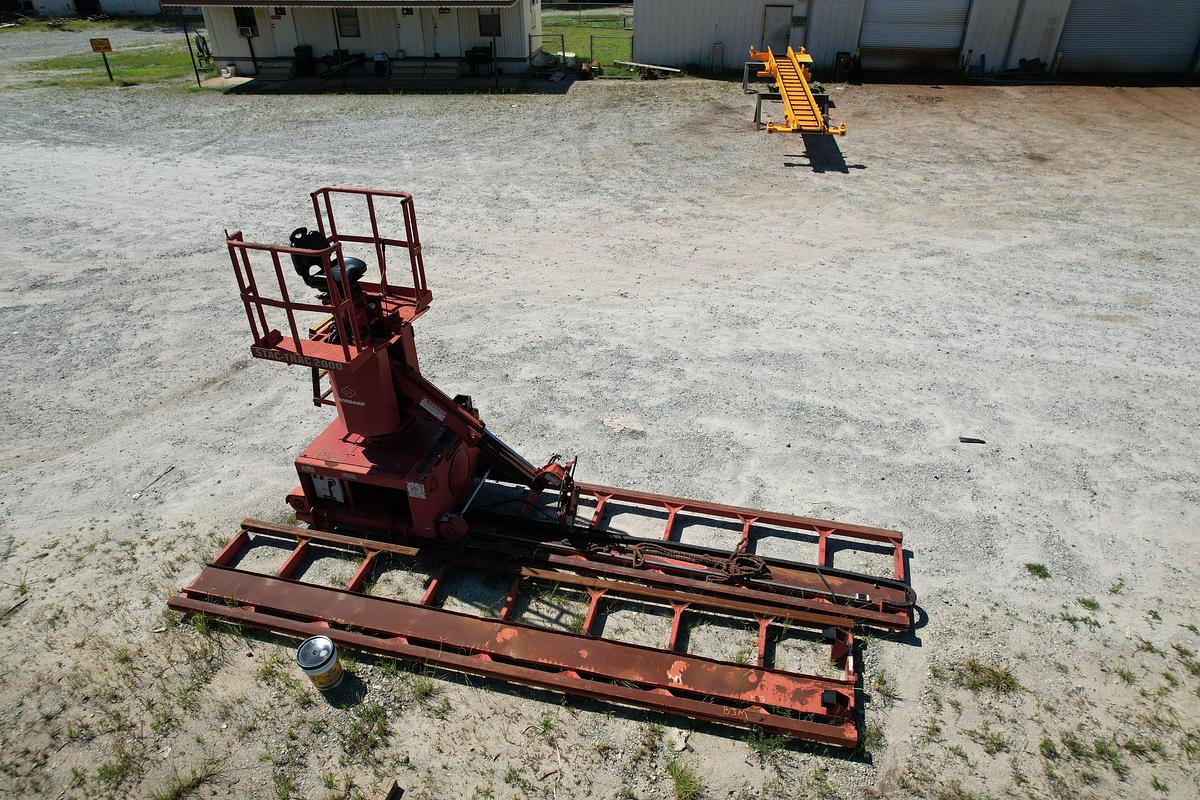

• Heavy-Duty Track System: Equipped with a standard 40 ft. (12.1 m) track with Nylotube electric cable carrier for smooth, reliable travel along the green chain or yard area.

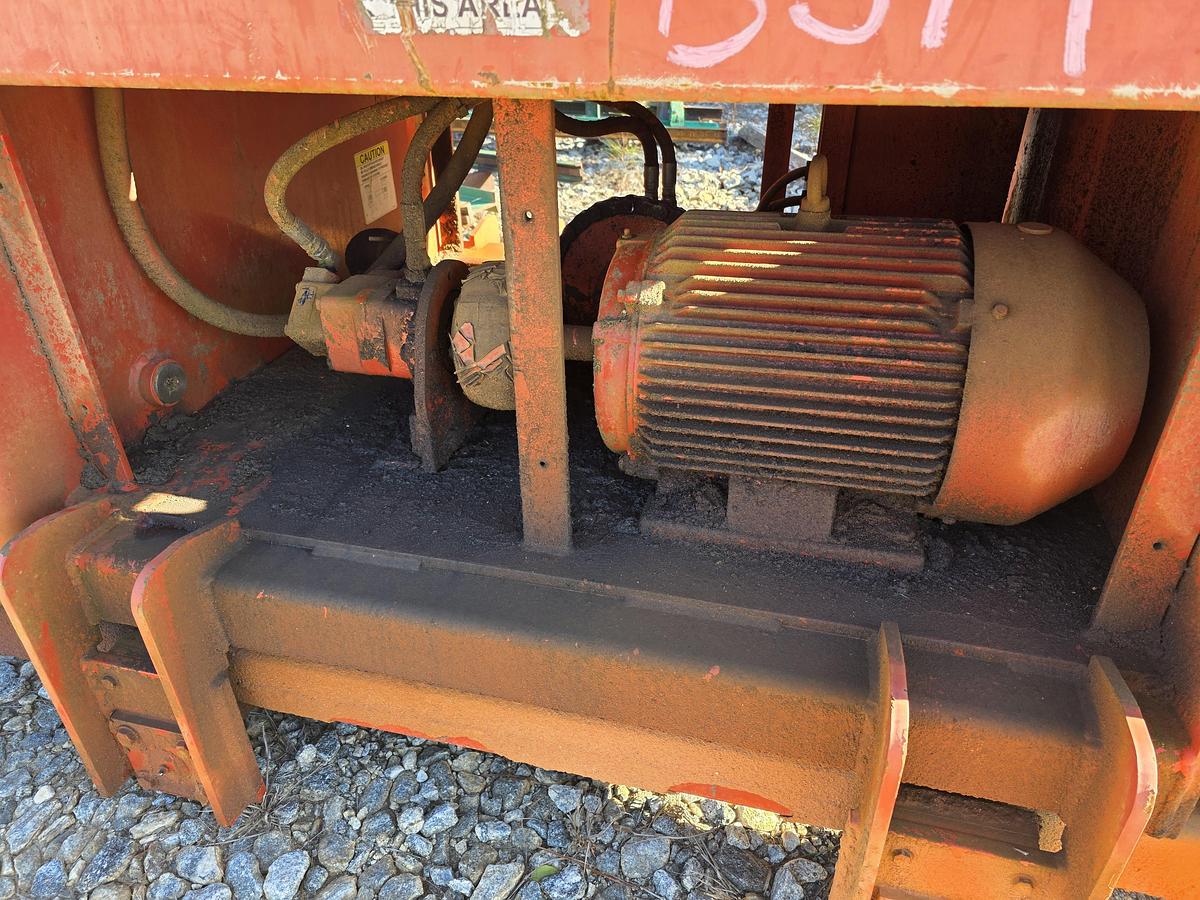

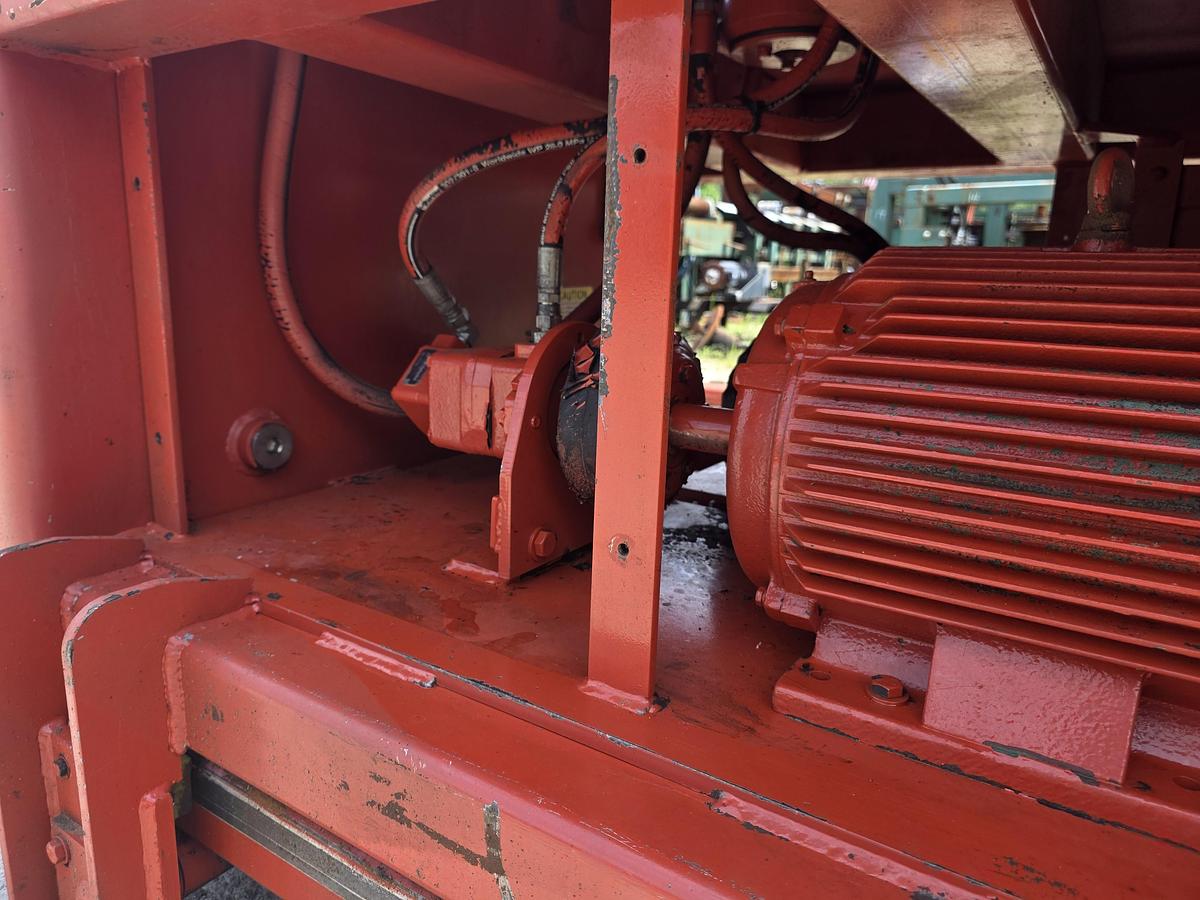

• Powerful Operation: Powered by a dependable 15 hp (11.2 kW) electric drive motor with starter and guards for continuous industrial use.
• High Lifting Capacity: Handles up to approximately 2,065 lb (936 kg) of material, making it ideal for demanding stacking applications.

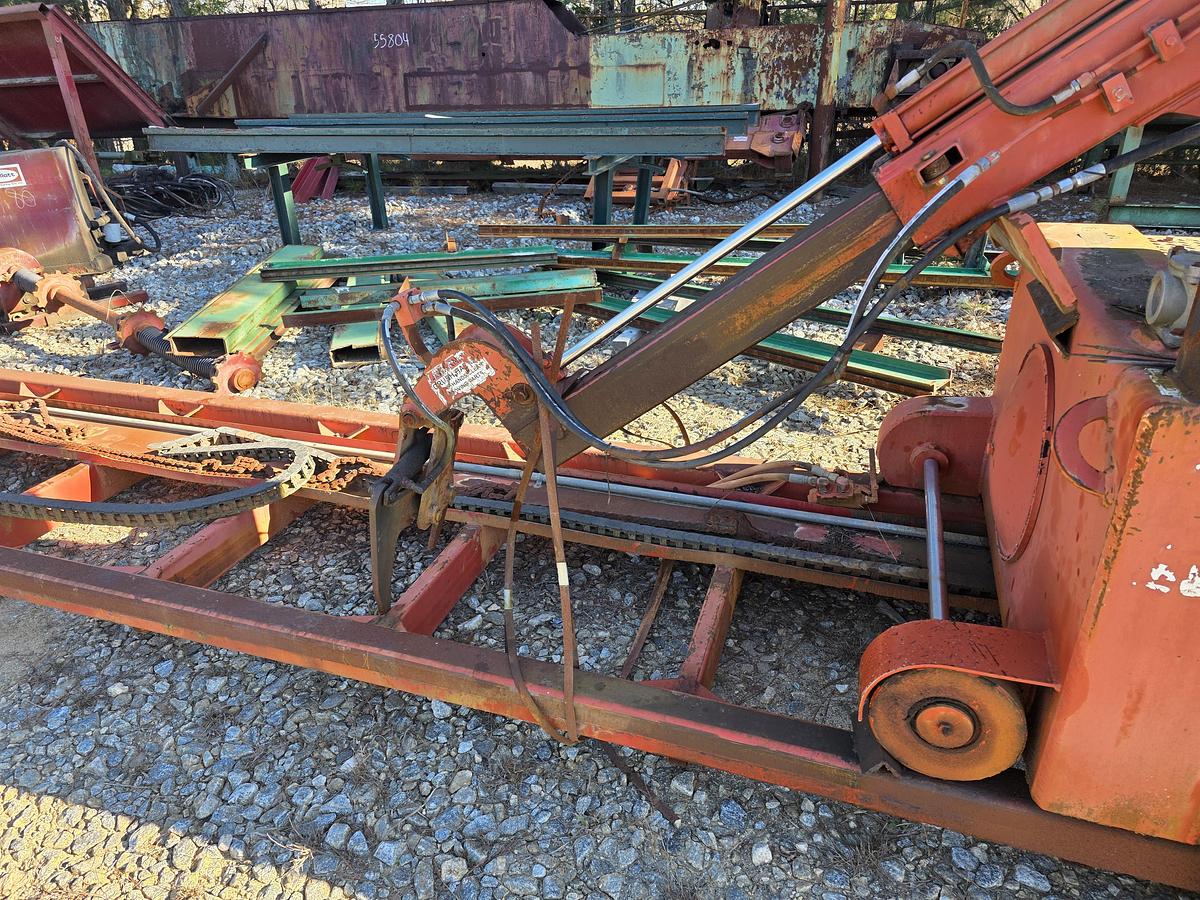

• 360° Boom Rotation: Hydraulic lift arm assembly with full 360-degree rotation and two-point grapple provides precise control of loads in tight spaces.
• Grapple Versatility: Grapple opening from about 1.375″ to 18″ accommodates a wide range of lumber sizes.

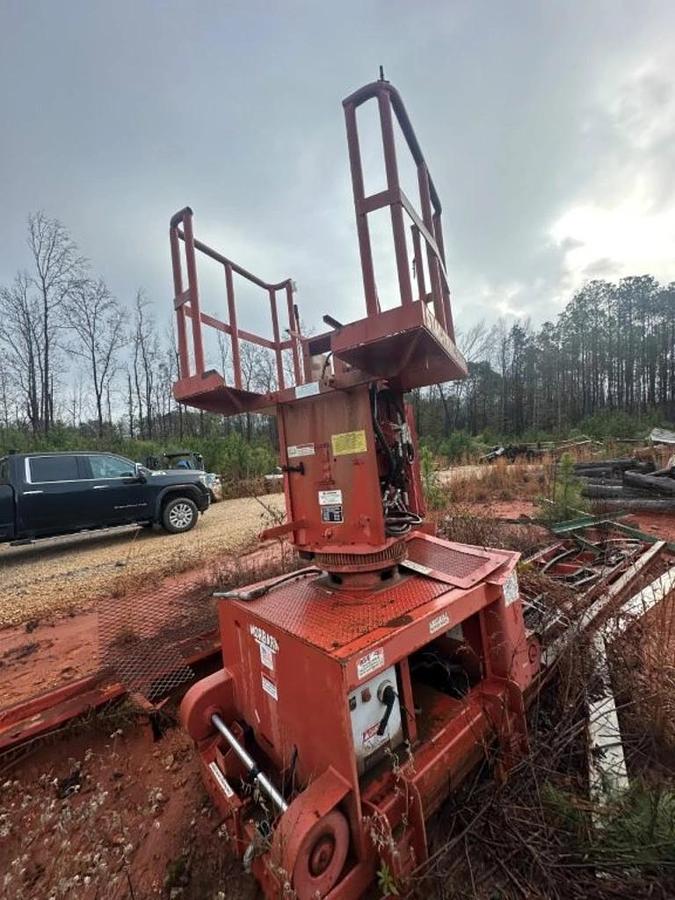

• Operator-Focused Design: Single operator controls all movements — travel along track, grapple action, boom extension and lift, and swing — from a comfortable adjustable seat with ergonomically arranged controls.
• Reduced Labor & Increased Safety: Replaces multiple manual handlers on a green chain, decreasing labor costs and injuries associated with manual handling.

General Specifications:

• Weight: Approx. 5,100 lb (2,313 kg)
• Track Speed: ~190 fpm (57.9 m/min)
• Application:

Ideal for sawmills, lumber processing facilities, tie yards, and timber handling operations that require mechanized stacking, sorting, and material repositioning to boost productivity and reduce physical strain.
