Woodmizer LT 300 Sawmill

Wood-Mizer LT 300 Industrial portable sawmill with a maximum log diameter of 910 mm (36") and a 22 kW (30 HP) electric motor. It features a robust design with fully hydraulic log handling for increased productivity. MANY SPARE PARTS

Specifications

Specific data for the 2003 model of the Wood-Mizer LT 300 can be summarized as follows, according to LECTURA Specs and merchant listings:

Feature

Specification

Max Log Diameter

910 mm (36")

Max Cutting Width

~730 mm (28")

Max Cutting Length

6.3 - 6.5 m (20' - 21'6")

Engine Power

22 kW (30 HP) electric motor

Weight

3,357 kg (7,400 lbs)

Blade Length

4668 mm (184")

Blade Width

38 mm (1.5")

Feed Speed

Up to 47 m/min (150 ft/min)

Key Features

• Hydraulic Log Handling: The sawmill is equipped with a complete hydraulic system for log handling, including log loading arms, a claw log turner, and log clamps, which helps streamline the milling process.
• Powered Saw Head: The saw head's movement (up/down and forward/reverse) is powered, enhancing ease of use and efficiency.

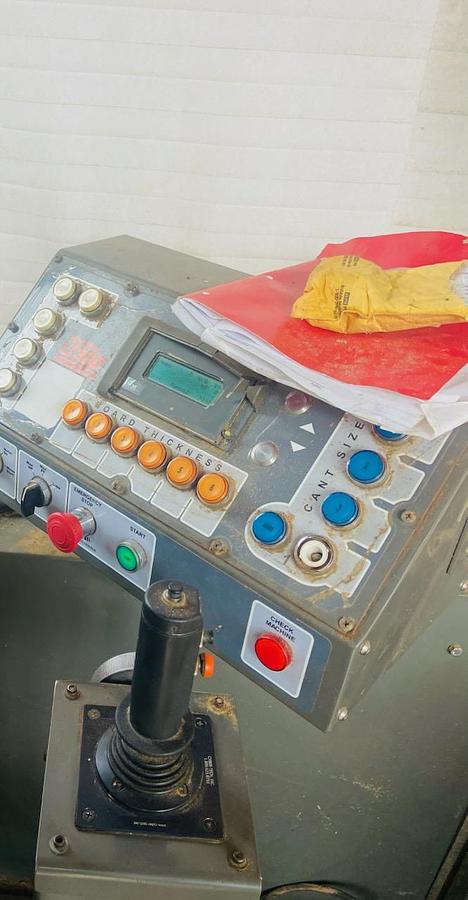

• Setworks: It typically includes the SimpleSet setworks, which allows the operator to quickly and accurately control the blade height by saving two pre-set board thicknesses. Not Sure of which setworks it has
• MANY SPARE PARTS
