YATES AMERICAN A20-12 Planer Matcher

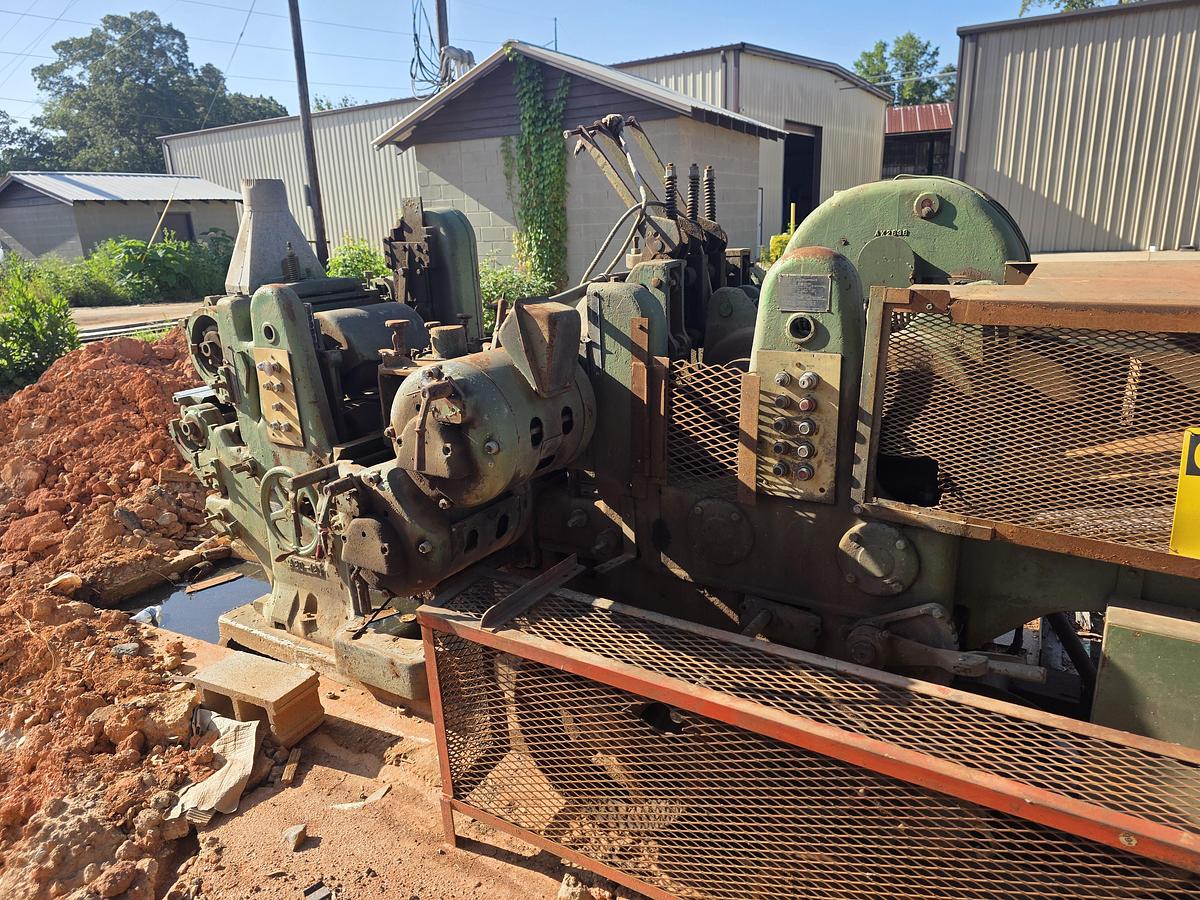

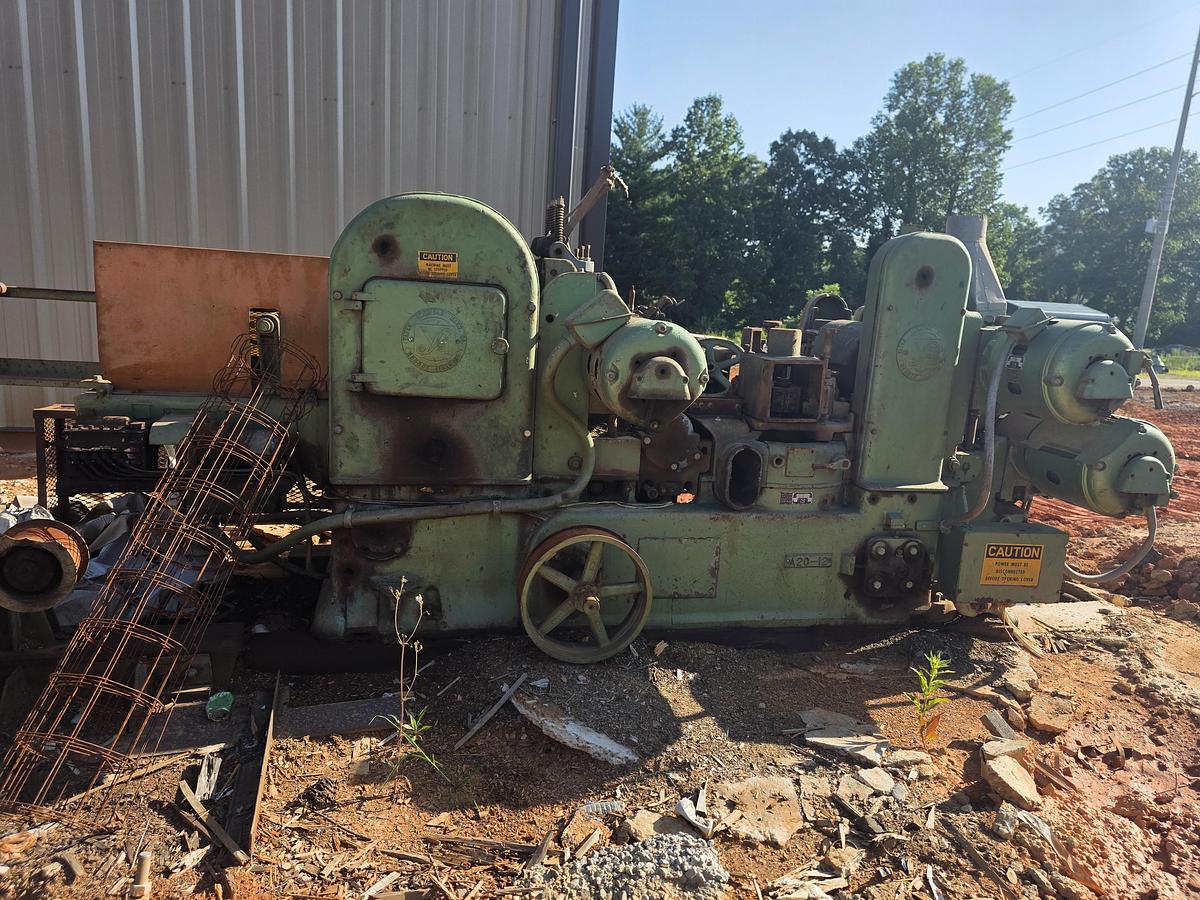

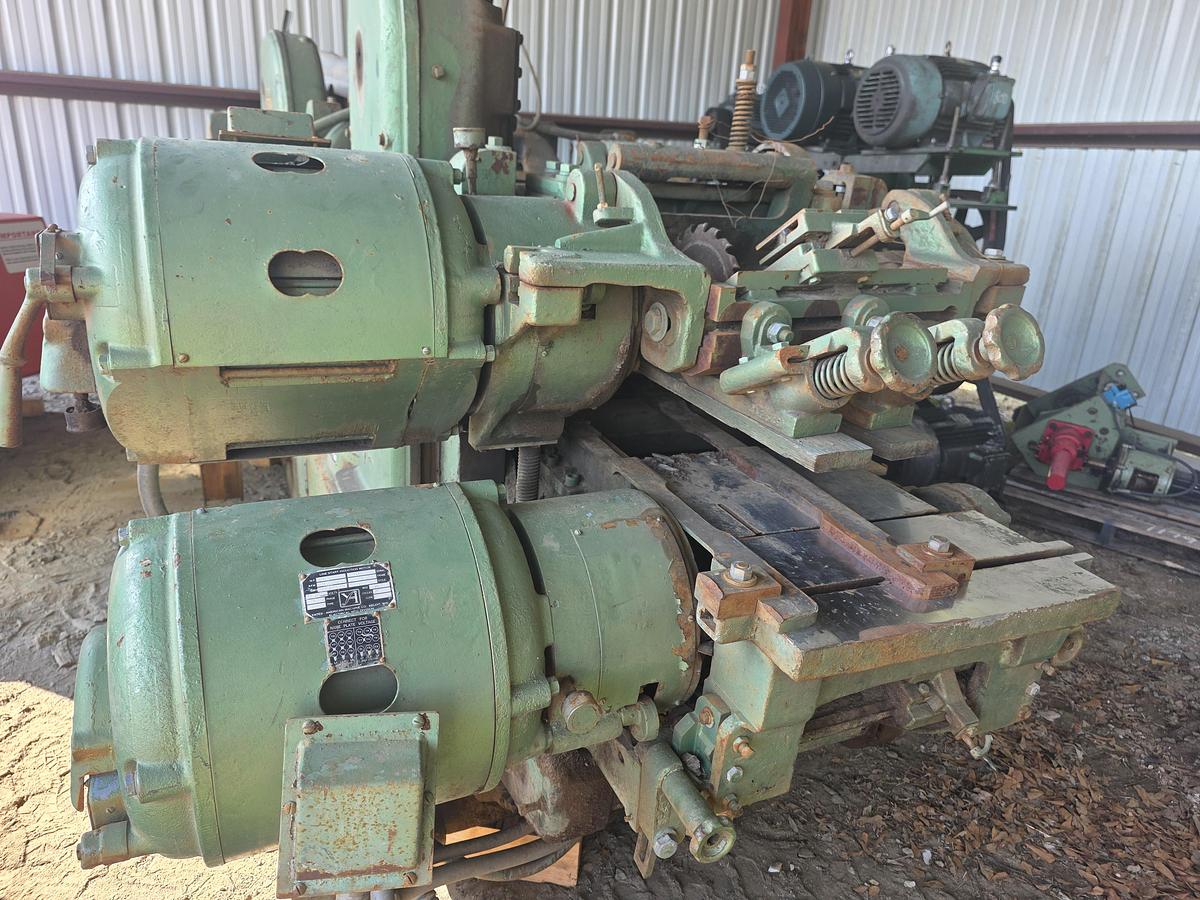

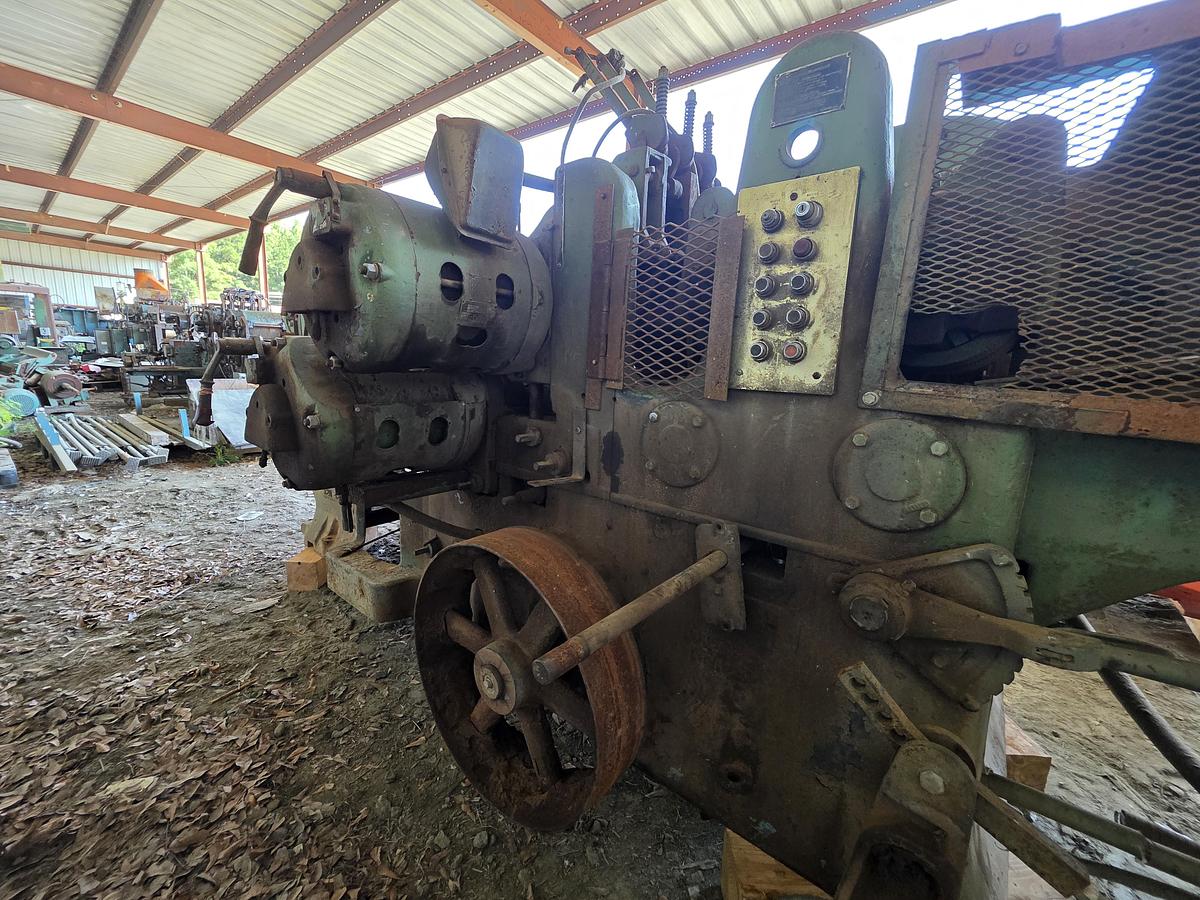

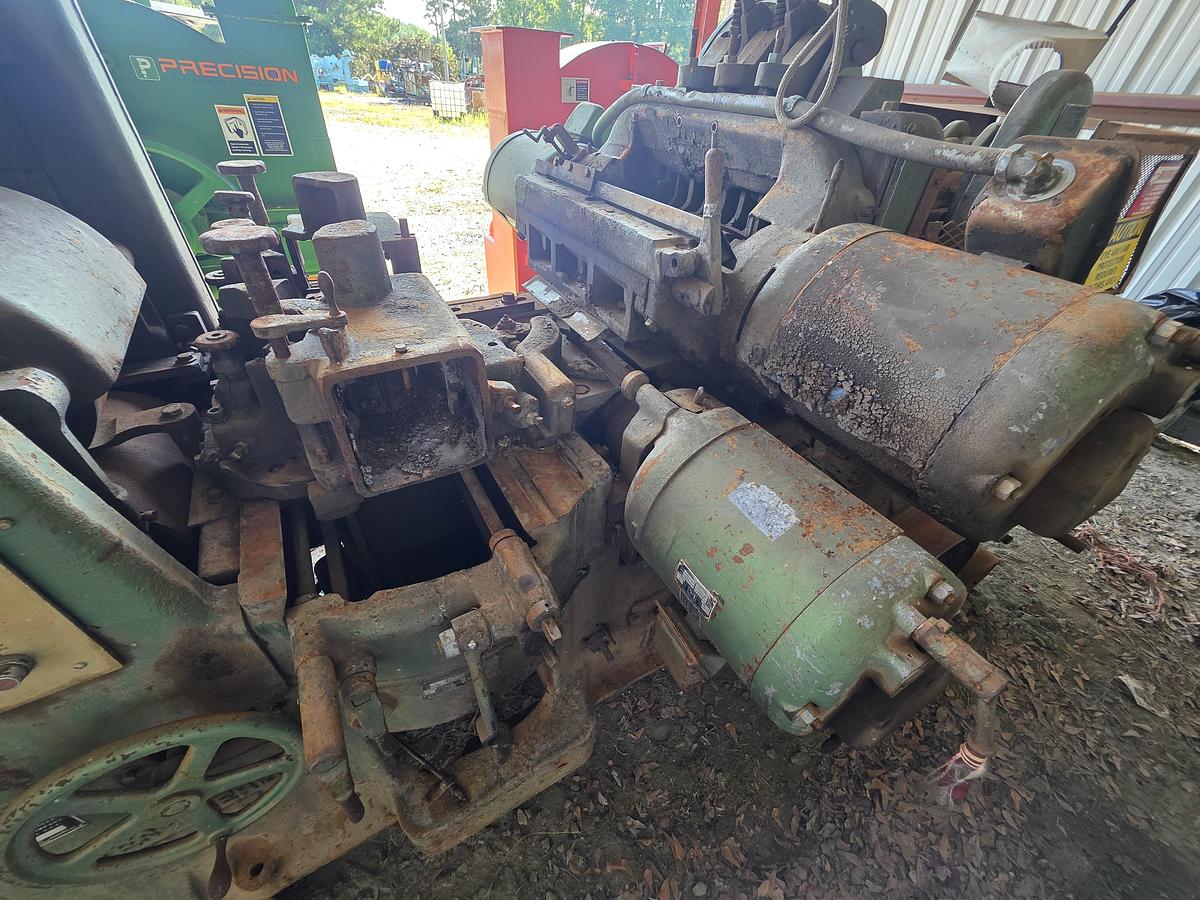

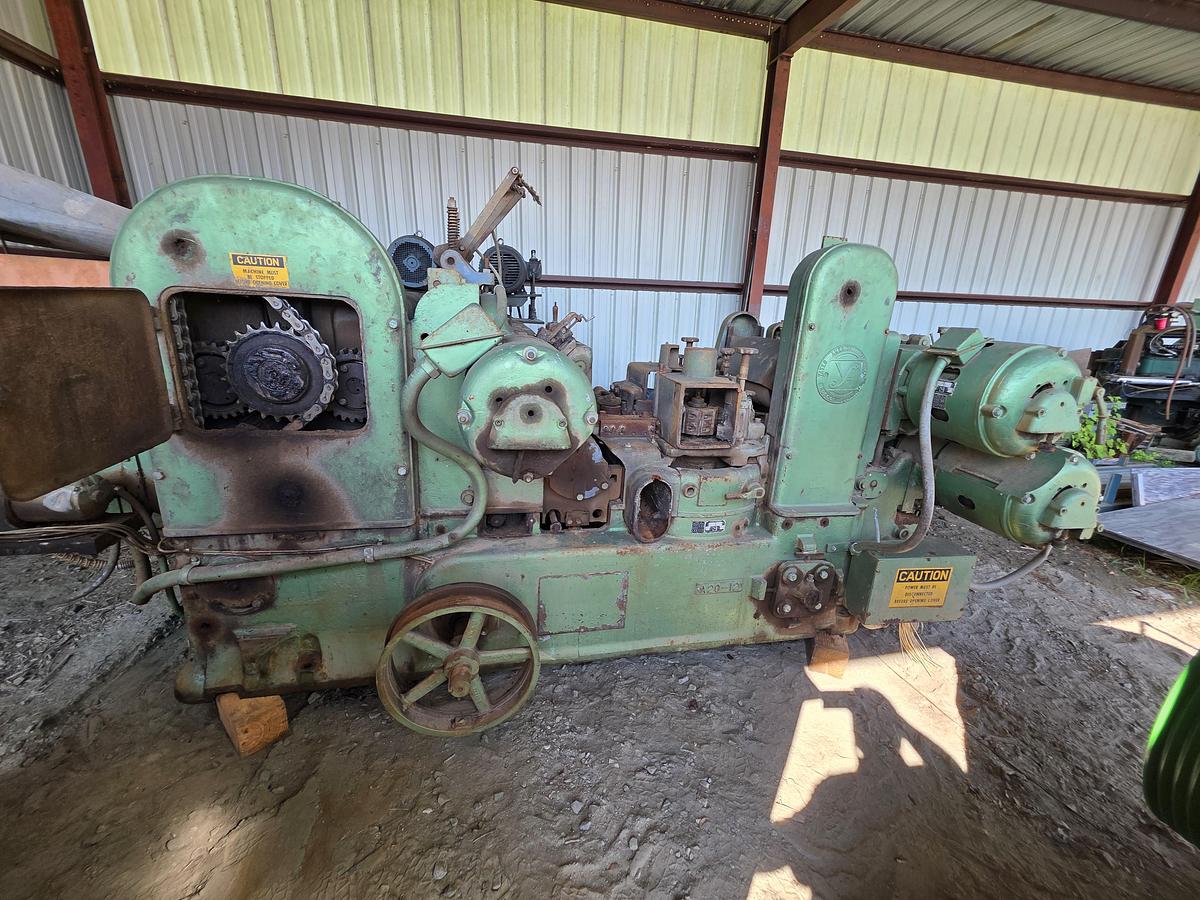

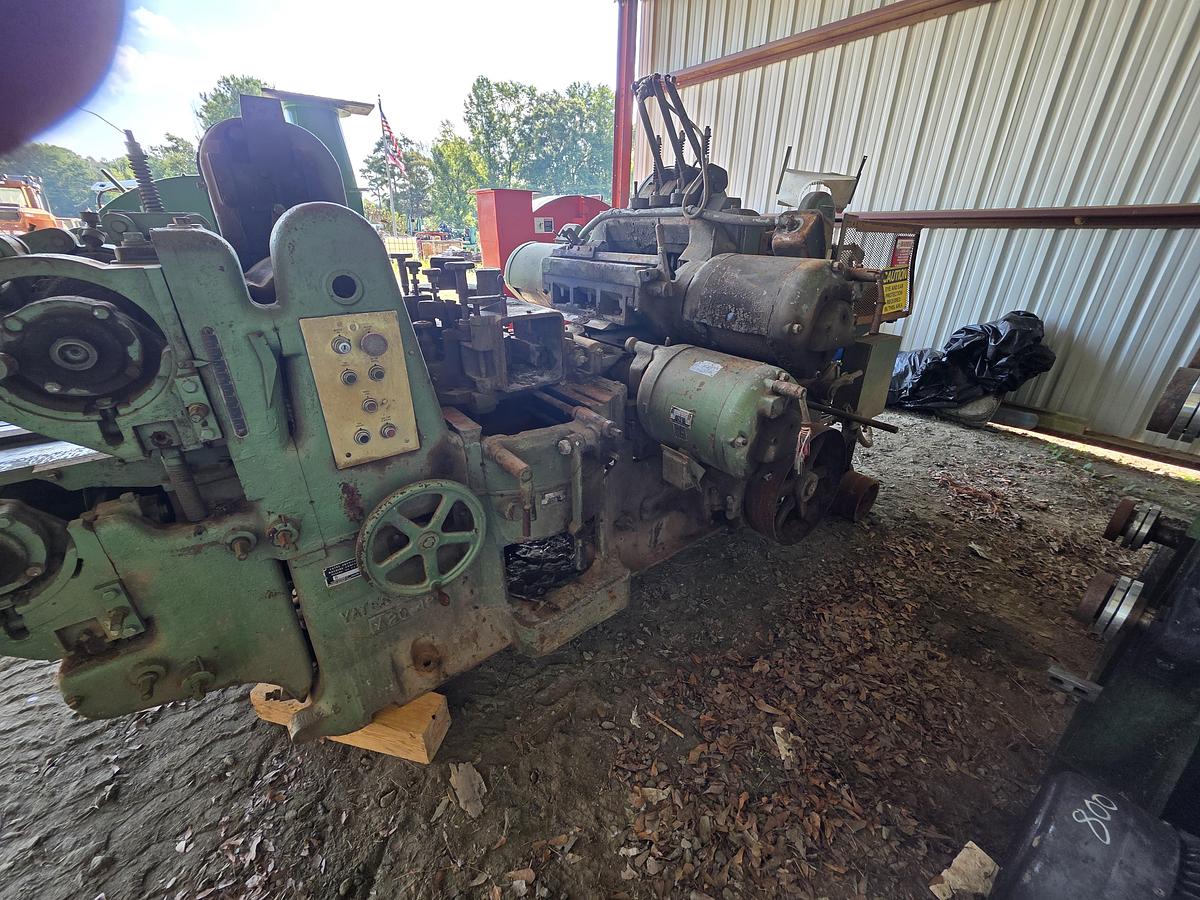

Yates-American Model A20-12 Planer Matcher

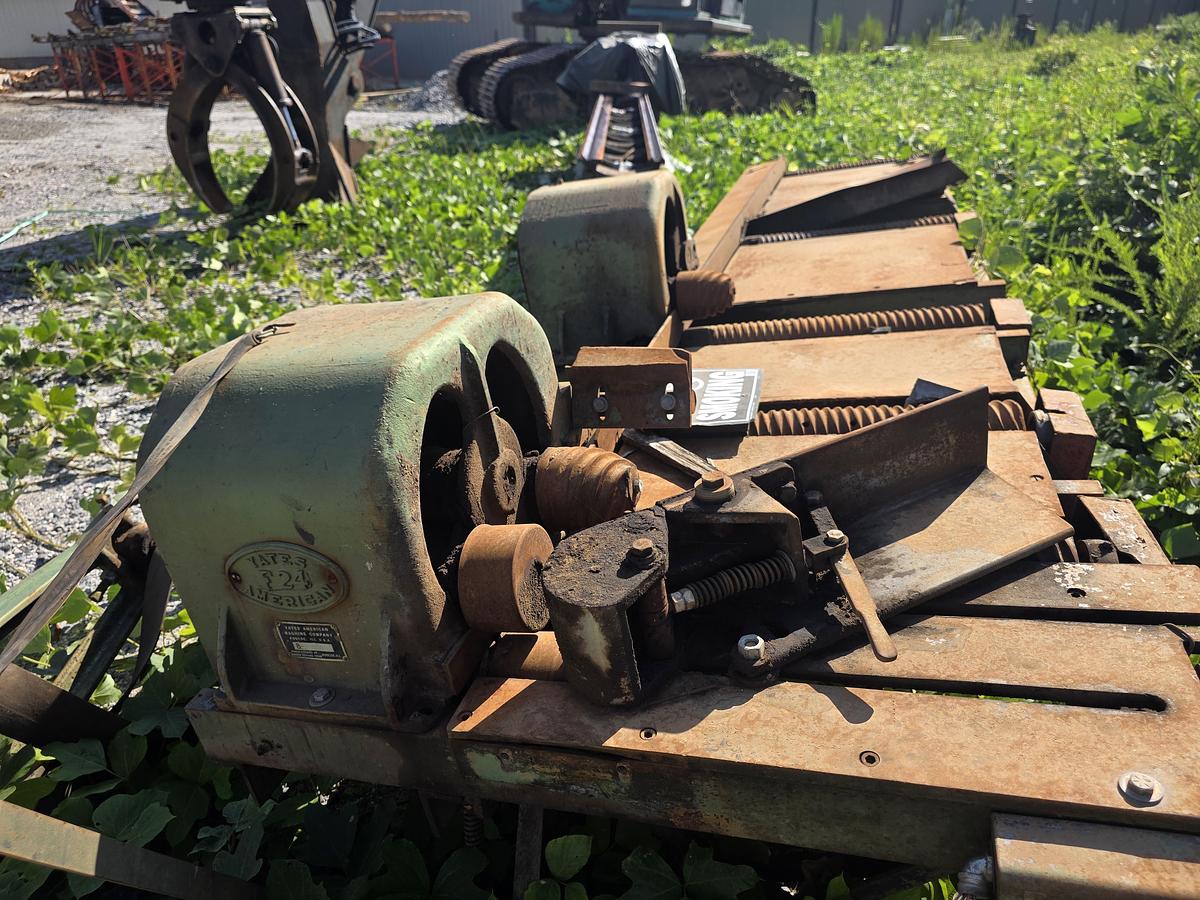

• The industry standard—the planer that helped build America. This heavy-duty Yates-American planer matcher features an 8-knife cutterhead and a maximum capacity of 8" × 15" and large 12"-diameter feed rolls provide positive feeding for demanding lumber-production applications. Also includes factory matched F24 Yates American Pineapple Feed Table

It is suitable for high-production surfacing, sizing, profiling, and matching of lumber. It can be used to manufacture finished dimensional lumber, flooring, decking, paneling, siding, and other tongue-and-groove or profiled wood products.

A one-owner machine, its recent relocation to our facility was the first time the planer had been moved since it was originally installed new.

Specifications:

• Capacity: 8" × 15"
• Cutterhead: 8-knife
• Top head: Two 35 HP motors—70 HP total
• Bottom head: 35 HP
• Side heads: 25 HP and 35 HP
• Profilers: Two 35 HP units
• Feed rolls: 12" diameter
• One-owner machine
